ASME Shell and Tube Heat Exchanger 200m² 10MPa Design Pressure
| Plaats van herkomst | Jiangsu, China |
|---|---|
| Merknaam | sureway |
| Min. bestelaantal | 1 |
Neem contact met me op voor gratis monsters en coupons.
Whatsapp.:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Dimensie | 4500 1000 1500 | Volume | 1000 m3 |
|---|---|---|---|
| Innerlijk materiaal | Siliconcarbide/2205DuplexSteel Pipe/Pfalineds/316L | Buitenmateriaal | 304/staal linedppy |
| Ontwerpdruk | 1-10MPa | Werktemperatuur | 196 - 300 ℃ |
| Gewicht | 2000 kg | Het Gebied van de hitteuitwisseling | 200 m2 |
| Materiaal | Q345R/316L/TA2/304/PTEE | Verwarmingsbuis | Pure PPT/siliciumcarbide composietpijp |
| flenstype | PP flens/304 roestvrijstalen versterkingsring | Aantal buizen | 2 reizen |
| Kerncomponenten | Drukvat | Ontwerpstandaard | ASME |
| Apparatuurstandaarden | ASME | ||
| Markeren | 200m² Shell and Tube Heat Exchanger,ASME Shell and Tube Heat Exchanger,10MPa Shell and Tube Heat Exchanger |
||
Productomschrijving
Shell and Tube Heat Exchanger
Product Specifications
| Attribute | Value |
|---|---|
| Design Pressure | 1-10 MPa |
| Working Temperature | 196°C - 300°C |
| Warranty | 1 Year |
| Weight | 2000 KG |
| Volume | 1000 m³ |
| Dimensions (L×W×H) | 4500 × 1000 × 1500 mm |
| Heat Exchange Area | 200 m² |
| Number of Tubes | 2 trips |
| Design Standard | ASME |
Key Features
- Enhanced heat exchange performance with 200m² heat exchange area
- Robust construction with Q345R/316L/TA2/304/PTEE materials
- Pressure resistance up to 10 MPa
- Precision temperature control with high-accuracy tubes
- Low maintenance design with modular structure
- Energy-efficient operation for cost savings
- Customizable design for various industrial applications
- ASME certified for safety and reliability

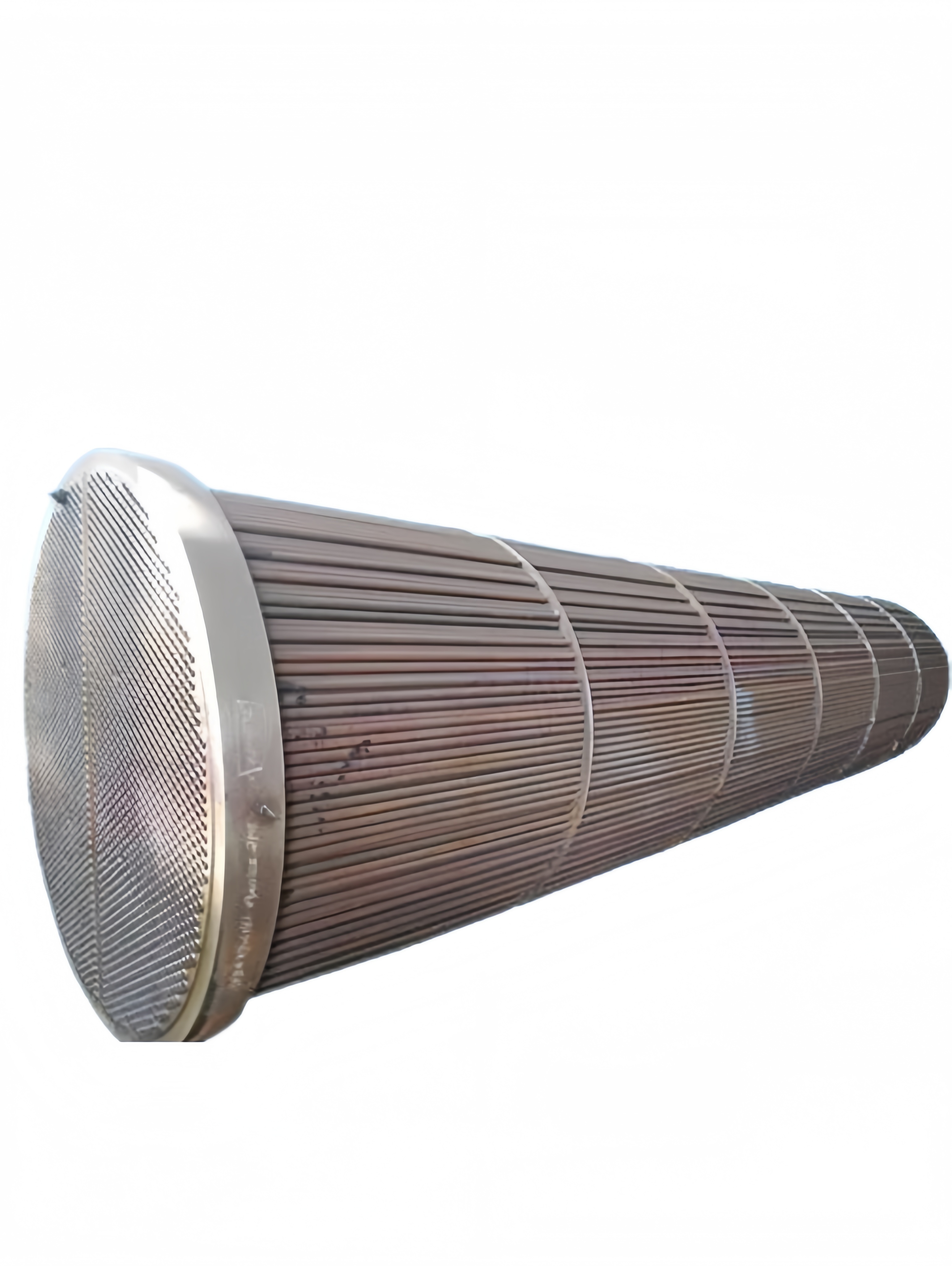

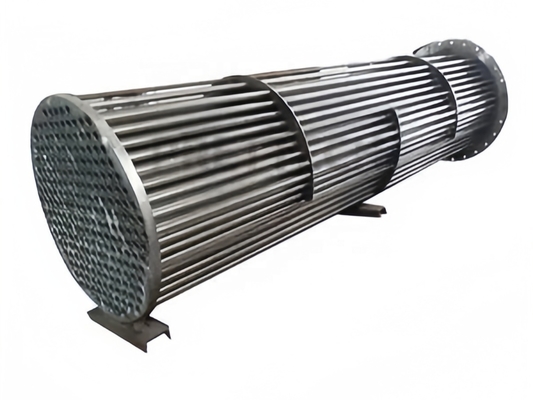

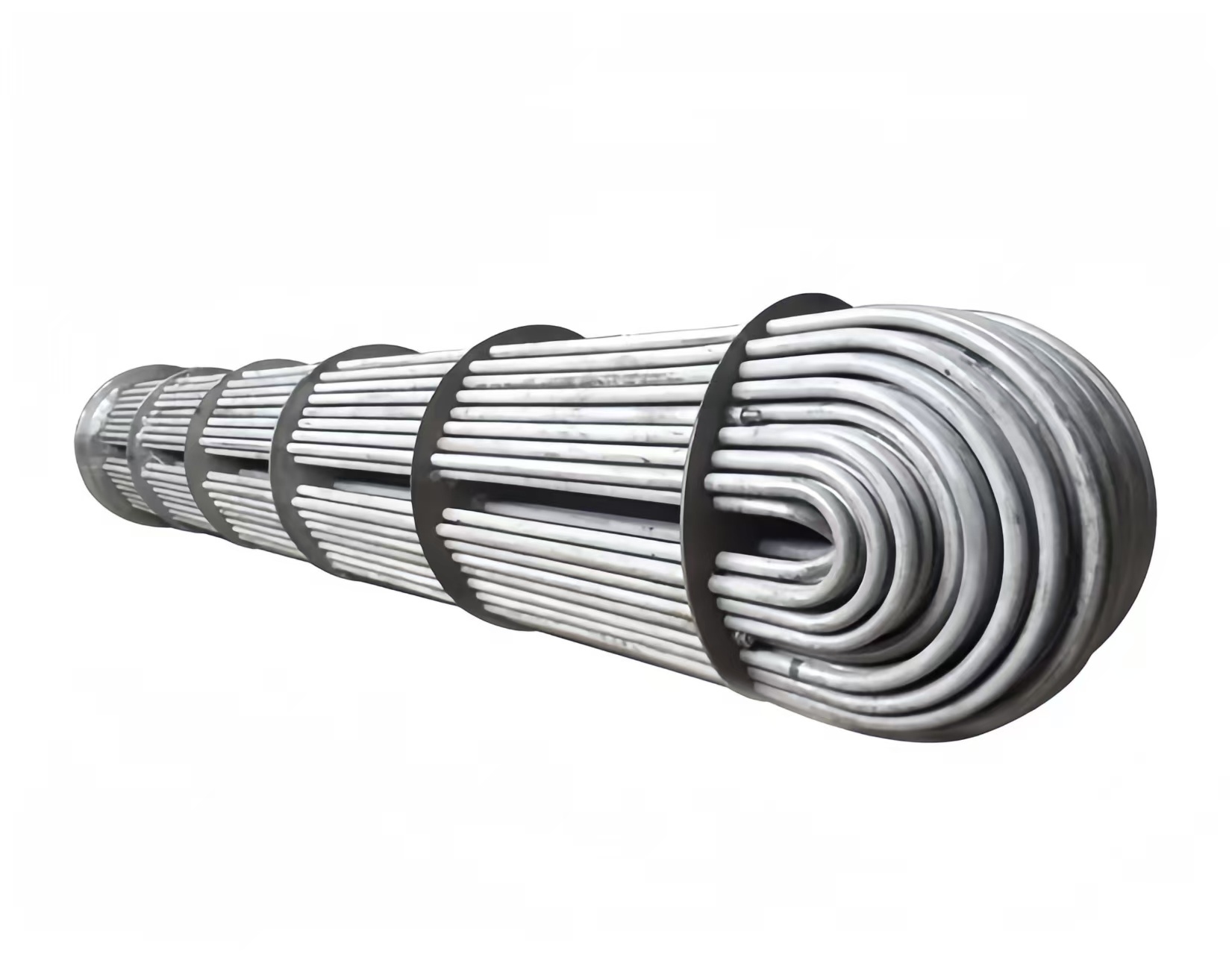

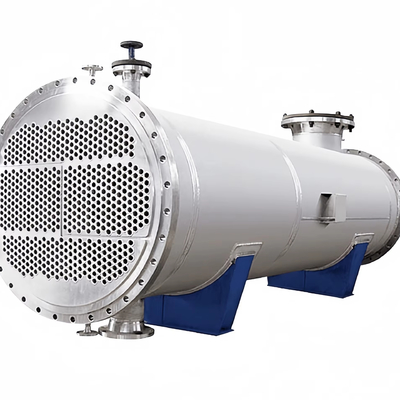

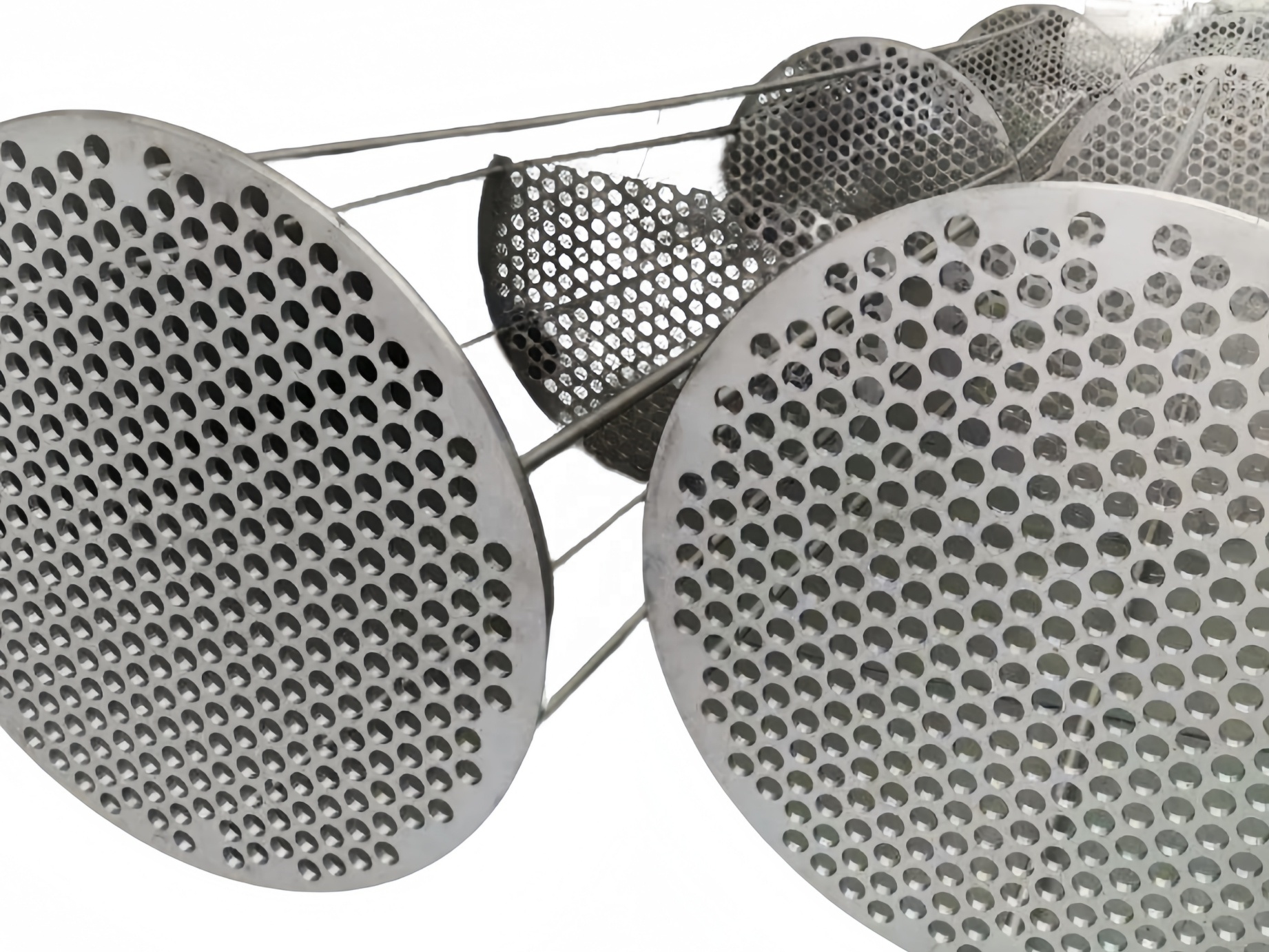

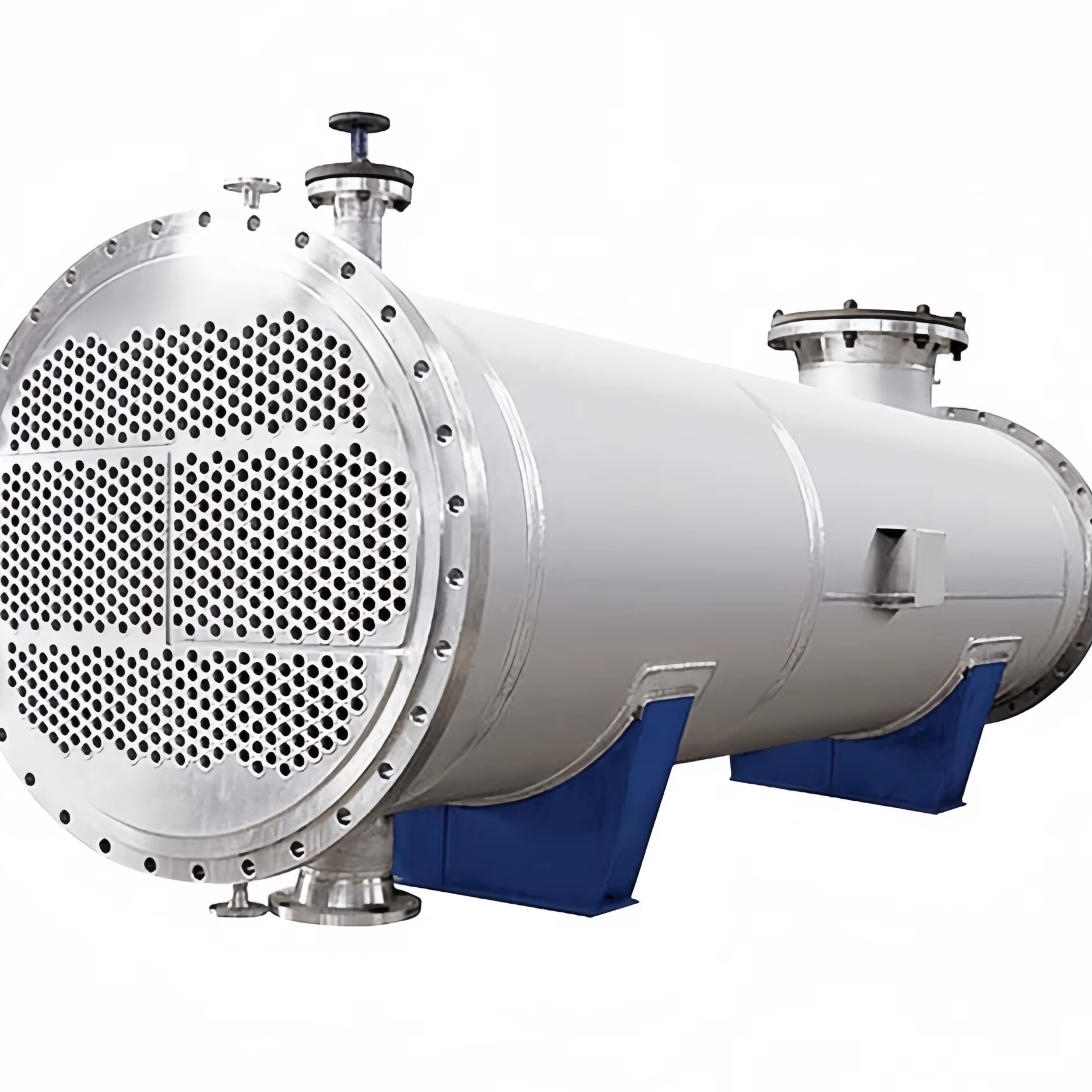

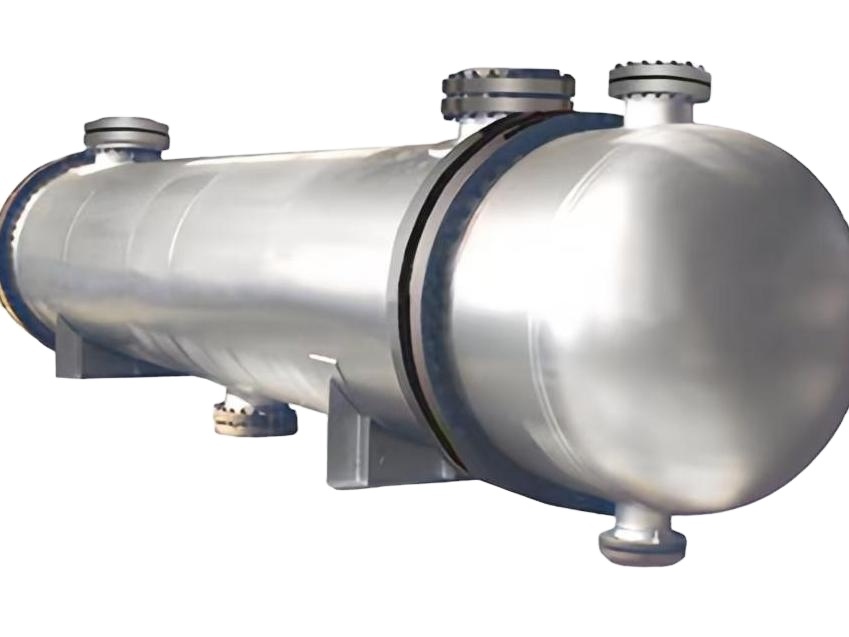

Product Images
Technical Specifications
| Component | Material |
|---|---|
| Inner Material | Silicon Carbide / 2205 Duplex Steel Pipe / PFA Lined / 316L |
| Outer Material | 304 / Steel Lined PPY |
| Heat Exchange Tube | Pure PPT / Silicon Carbide Composite Pipe |
| Flange | PP Flange / 304 Stainless Steel Reinforcement Ring |
Product Advantages
- High Efficiency: Optimized design for maximum heat transfer with minimal energy loss
- Durability: Corrosion-resistant materials ensure long service life
- Safety: Built to withstand high pressures with multiple safety features
- Versatility: Suitable for various industrial processes and temperature ranges
- Maintenance: Easy disassembly for cleaning and maintenance
Manufacturer Information
Shanghai Sureway Industrial Company Limited specializes in chemical engineering technology and equipment manufacturing. With over a decade of experience, we provide innovative solutions for chemical processing, gas separation, and industrial automation systems. Our expertise includes:
- LNG and CO2 plant equipment
- Sulfur-based chemical production technology
- Pressure vessels and heat exchangers
- Industrial automation systems
Frequently Asked Questions
Where are you located?
We are based in Shanghai, China, serving clients worldwide including Africa, Southeast Asia, Mid East, and North America.
How do you ensure product quality?
We conduct pre-production samples and final inspections before shipment, with video outgoing-inspection and machinery test reports provided.
What payment methods do you accept?
We accept T/T, L/C, Credit Card, PayPal, Western Union, and other major payment methods in USD, EUR, or CNY.
